model |
75 inches |
86 inches |
|
|
physical dimension |
3907.1mm*1025.6mm*155mm (L*H*T) |
4153.4mm*1164.4mm*155mm (L*H*T) |
|
|
Display area |
1649.66*927.936（H*V） |
1895.04*1065.96（H*V） |
|
|
colour |
iron gray + black |
||
|
material |
Aluminum alloy + metal |
||
|
Front interface |
USB 3.0*3、HDMI IN*1、TOUCH*1 |
||
|
rear interface |
Coax*1、AV out*1、AV in*1、TV*1、PC Audio*1、VGA*1、RS232*1、RJ45*1、HDMI*2、TF Card*1、USB*2 |
||
|
front button |
Power, Signal Toggle, Settings, Volume+, Volume-, Energy Saver, Home, OPS |
||
|
hot key |
15 left and right secondary screens |
||
|
Pen tray |
Left and right secondary screen front pass pen slot |
||
|
Wifi |
Built-in 2.4/5G dual-band |
||
|
Bluetooth |
built-in |
||
|
speaker |
2*15W (forward) |
||
|
Special feature |
Interconnected memory function |
||
|
software |
Internet memory software, screen pull-down, mobile teaching (optional), micro-lecture assistant (optional) |
||
|
Secondary screen panel |
Aluminum honeycomb, dark green/black optional |
||
|
Packing |
EPE+carton |
||
|
Main screen packaging size |
1873mm*1197mm*270mm |
2140mm*1340mm*280mm |
|
|
Secondary screen packaging size |
1290mm*1105mm*150mm |
1290mm*1241mm*150mm |
|
|
net weight |
About 120KG |
About 130KG |
|
|
Gross weight |
About 140KG |
About 150KG |
|
|
model |
75 inches |
86 inches |
|
Backlight type |
LED |
|
|
Display area |
1649.66*927.936（H*V） |
1895.04*1065.96（H*V） |
|
Aspect ratio |
16:9 |
|
|
Resolution |
3840*2160 |
|
|
pixel pitch |
0.4935*0.4935 |
|
|
refresh rate |
60Hz |
|
|
brightness |
350cd/㎡ |
|
|
Contrast |
4000:1 |
|
|
response rate |
≤8ms |
|
|
Viewing angle |
178° |
|
|
model |
75 inches |
86 inches |
|
touch panel |
4mm AG tempered glass |
|
|
touch technology |
High-precision infrared sensing |
|
|
Touch points |
20 o'clock |
|
|
touch area |
Full area touch (main screen + secondary screen) |
|
|
touch resolution |
32767*32767 |
|
|
touch accuracy |
±1.5mm |
|
|
minimum identifier |
3mm |
|
|
support system |
Windows11/10/8/7、Android、Mac OS X、Linux |
|
|
model |
75 inches |
86 inches |
|
Android version |
6.0 |
|
|
CPU |
Cortex A53 |
|
|
processor |
dual core processor |
|
|
Body memory |
8G (optional higher) |
|
|
running memory |
1G (optionally higher) |
|
六、 OPS computer
|
structure |
Intel standard 80Pin plug-in structure |
|
CPU |
Intel Core I5 (optional) |
|
motherboard |
H110 (optional) |
|
RAM |
4G DDR3 (optional) |
|
hard disk |
128G SSD (optional) |
|
graphics card |
integrated |
|
system |
Windows 10 preinstalled |
|
model |
75 inches |
86 inches |
|
|
input power |
220V 50/60Hz |
||
|
Working power consumption |
About 350W |
About 400W |
|
|
Standby power consumption |
≤0.5W |
||
|
AC switch |
1 |
||
|
Power interface |
Three-core product suffix |
||
|
manual |
1 copy (including certificate and warranty card) |
|
remote control |
1 |
|
touch pen |
2 |
|
power cable |
1M*1 |
|
wall screw |
1 set |
|
wall mount |
1 set |
|
Operating temperature |
0°~ 40° |
|
Working humidity |
10%~90%RH |
|
Storage temperature |
-20°~ 60° |
|
Storage humidity |
10%~90%RH |
|
high altitude |
not applicable |

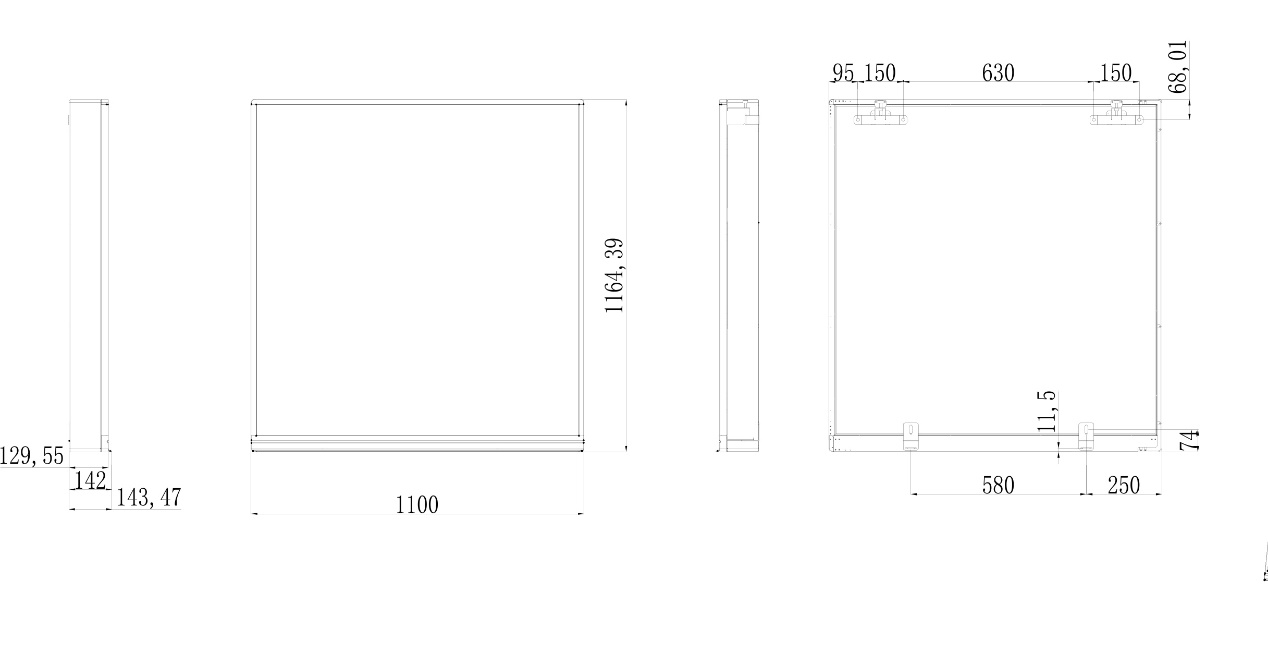

十、 Secondary screen six views
